PERFORMANCE

Processor

Intel Core i5-12500, 6C (6P + 0E) / 12T, P-core 3.0 / 4.6GHz, 18MB

Graphics

Integrated Intel UHD Graphics 770

Chipset

Intel Q670 Chipset

Memory

1x 8GB UDIMM DDR4-3200

Memory Slots

Four DDR4 DIMM slots, dual-channel capable

Max Memory

Up to 128GB DDR4-3200

Storage

512GB SSD M.2 2280 PCIe 4.0x4 Value NVMe Opal

Storage Support

Up to three drives, 1x 2.5"/3.5" HDD + 1x 2.5" HDD + 1x M.2 SSD • 2.5" HDD up to 1TB each • 3.5" HDD up to 2TB • M.2 SSD up to 2TB

Card Reader

None

Optical

None

Audio Chip

High Definition (HD) Audio, Realtek ALC897Q-CG codec

Speakers

2Wx1

Power Supply

260W 90%

DESIGN

Keyboard

USB Calliope Keyboard, Black, English

Mouse

USB Calliope Mouse, Black

Optional Bay

None

Expansion Slots

• One PCIe 4.0 x16, full-height, length ≤ 209mm, height ≤ 117.5mm
• Two PCIe 3.0 x1, full-height, length ≤ 185mm, height ≤ 110mm
• Two M.2 slots (one for WLAN, one for SSD)

Case Color

Black

Stand

No stand

Dust Filter

None

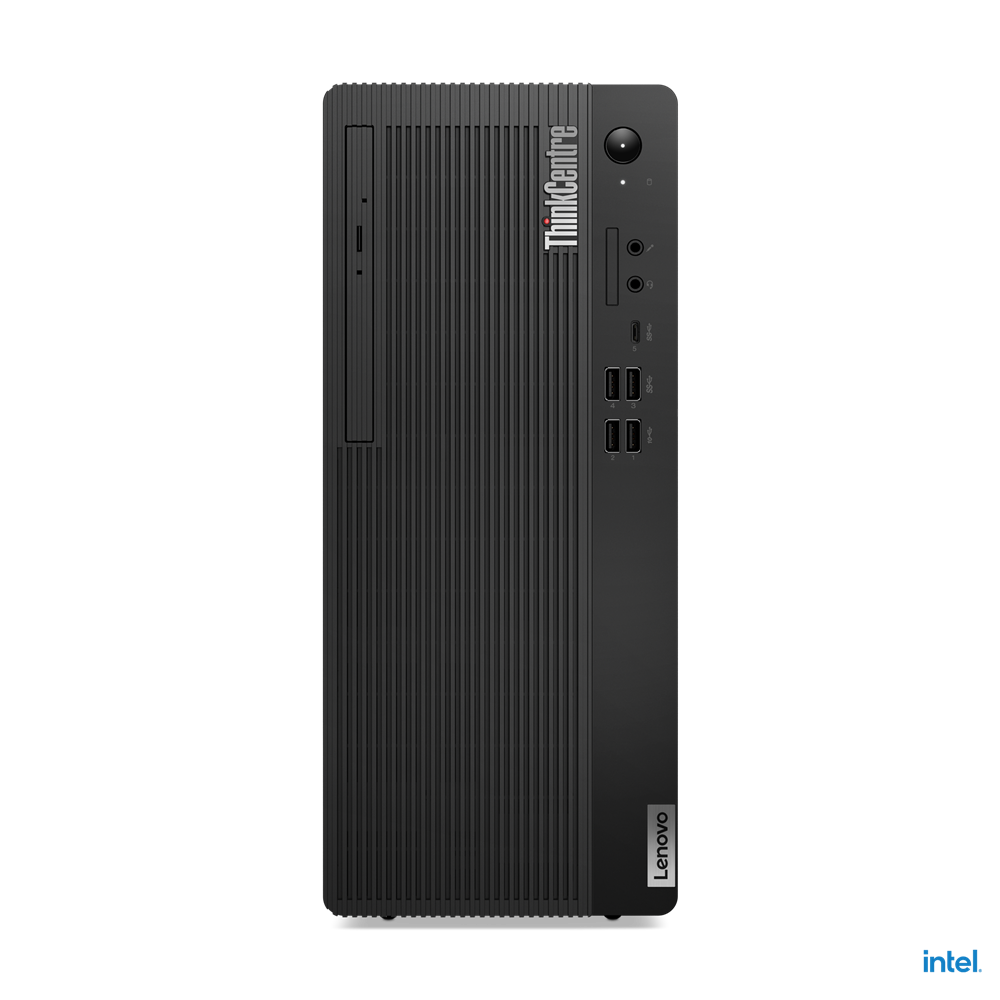

Form Factor

Tower (13.6L)

Dimensions (WxDxH)

145 x 296 x 346 mm (5.7 x 11.7 x 13.6 inches)

Weight

Around 5.9 kg (13.0 lbs)

CONNECTIVITY

Ethernet

Integrated 100/1000M

WLAN + Bluetooth

RTL8822CE 11ac, 2x2 + BT5.0

Front Ports

• 2x USB 3.2 Gen 1
• 2x USB 3.2 Gen 2
• 1x USB-C 3.2 Gen 1 (15W charging)
• 1x headphone / microphone combo jack (3.5mm)
• 1x microphone (3.5mm)

Rear Ports

• 4x USB 2.0
• 1x HDMI 2.1 TMDS
• 2x DisplayPort 1.4
• 1x Ethernet (RJ-45)
• 1x line-out (3.5mm)

Optional Rear Ports (configured)

None

Monitor Cable

None

SECURITY & PRIVACY

Security Chip

Discrete TPM 2.0, TCG certified

Fingerprint Reader

No fingerprint reader

Physical Locks

• Kensington Security Slot, 3 x 7 mm
• Padlock Loop

Smart Cable Clip

None

Chassis E-Lock

None

Chassis Intrusion Switch

None

MANAGEABILITY

System Management

Non-vPro

SERVICE

Base Warranty

1-year, Onsite

Included Upgrade

3Y Premier Support Upgrade from 1Y Onsite (5WS0T36147)

CERTIFICATIONS

Green Certifications

• EPEAT Silver
• ENERGY STAR 8.0
• ErP Lot 3
• TCO Certified 9.0
• RoHS compliant

Other Certifications

TÜV Rheinland Ultra Low Noise

Mil-Spec Test

MIL-STD-810H military test passed (Low Pressure [Altitude], High Temperature, Low Temperature, Temperature Shock, Humidity, Sand and Dust, Vibration, Shock, Fungus, Solar Radiation, Contamination by Fluids, Salt Fog)

SOFTWARE

Operating System

Windows 11 DG Windows 10 Pro 64, English

Bundled Software

None
