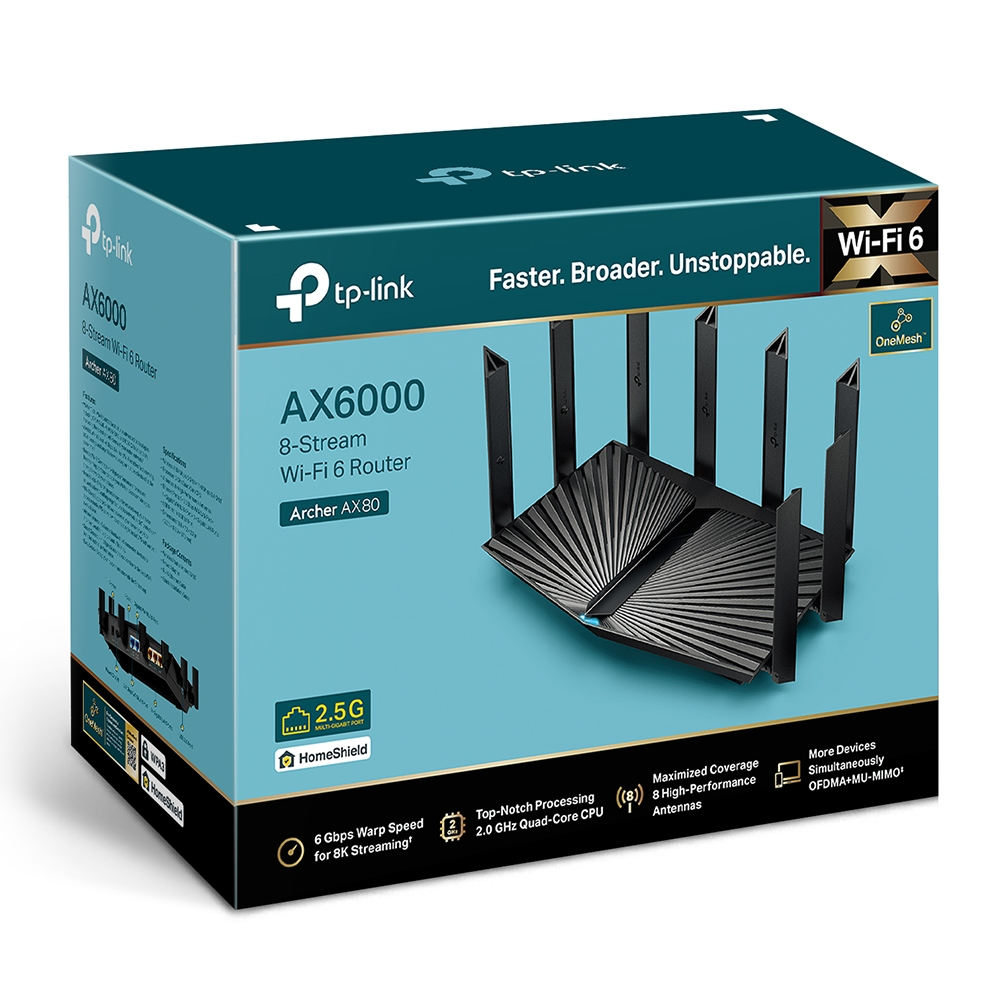

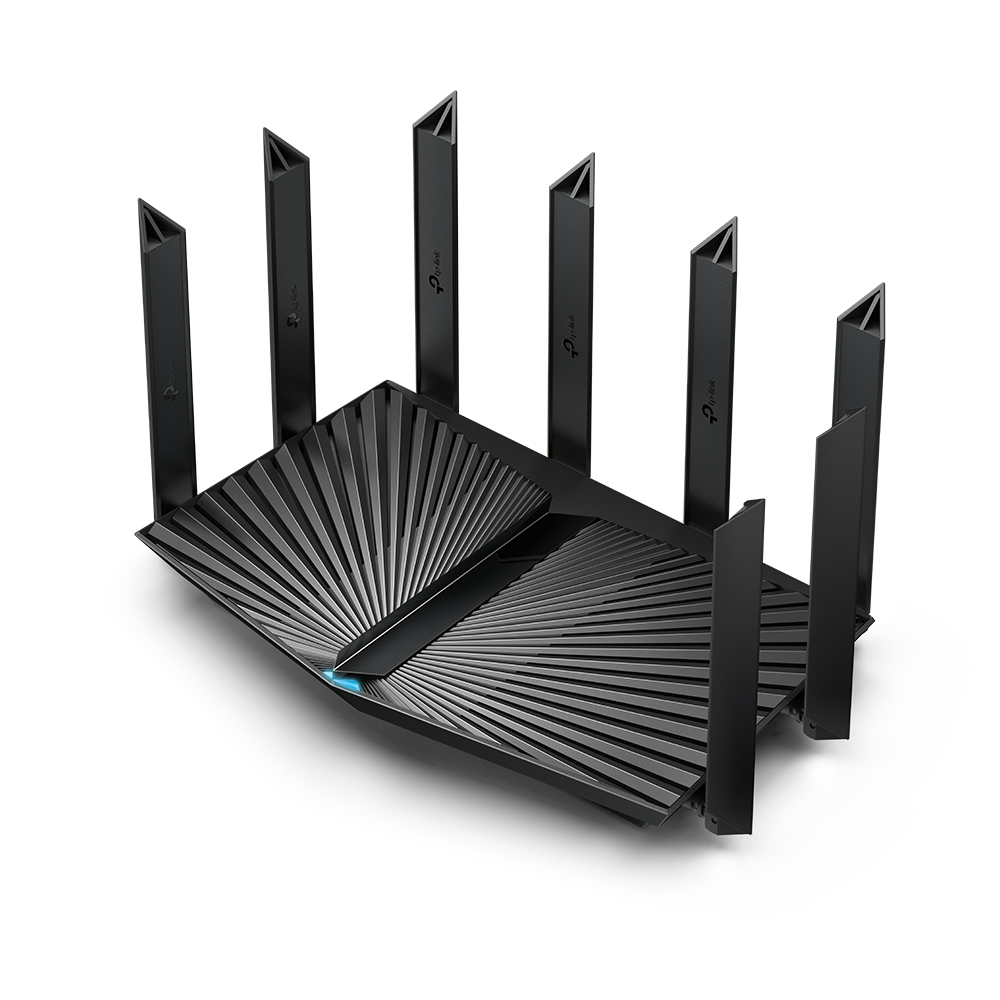

TP-LINK ARCHER AX80 AX6000 8-STREAM WIFI 6 ROUTER WITH 2.5G GIGABIT POR
MYR699.00
Color
Brand: TP-LINK
Get shipping estimates
| Country | ||
| State | ||
| Shipping Method | ||
|
|
||
WIRELESS
Standards Wi-Fi 6
• IEEE 802.11ax/ac/n/a 5 GHz
• IEEE 802.11ax/n/b/g 2.4 GHz
WiFi Speeds AX6000
• 5 GHz: 4804Mbps (802.11ax, HE160)
• 2.4 GHz: 1148 Mbps (802.11ax)
WiFi Range 3+ Bedroom Houses
________________________________________
• 8× Fixed High-Performance Antennas
Multiple antennas form a signal-boosting array to cover more directions and large areas
• Beamforming
Concentrates wireless signal strength towards clients to expand WiFi range
• High-Power FEM
Improves transmission power to strengthen signal coverage
WiFi Capacity High
________________________________________
• Dual-Band
Allocate devices to different bands for optimal performance
• OFDMA
Simultaneously communicates with multiple Wi-Fi 6 clients
• Airtime Fairness
Improves network efficiency by limiting excessive occupation
• DFS
Access an extra band to reduce congestion
• 8 Streams
Connect your devices to more bandwidth
Working Modes • Router Mode
• Access Point Mode
HARDWARE

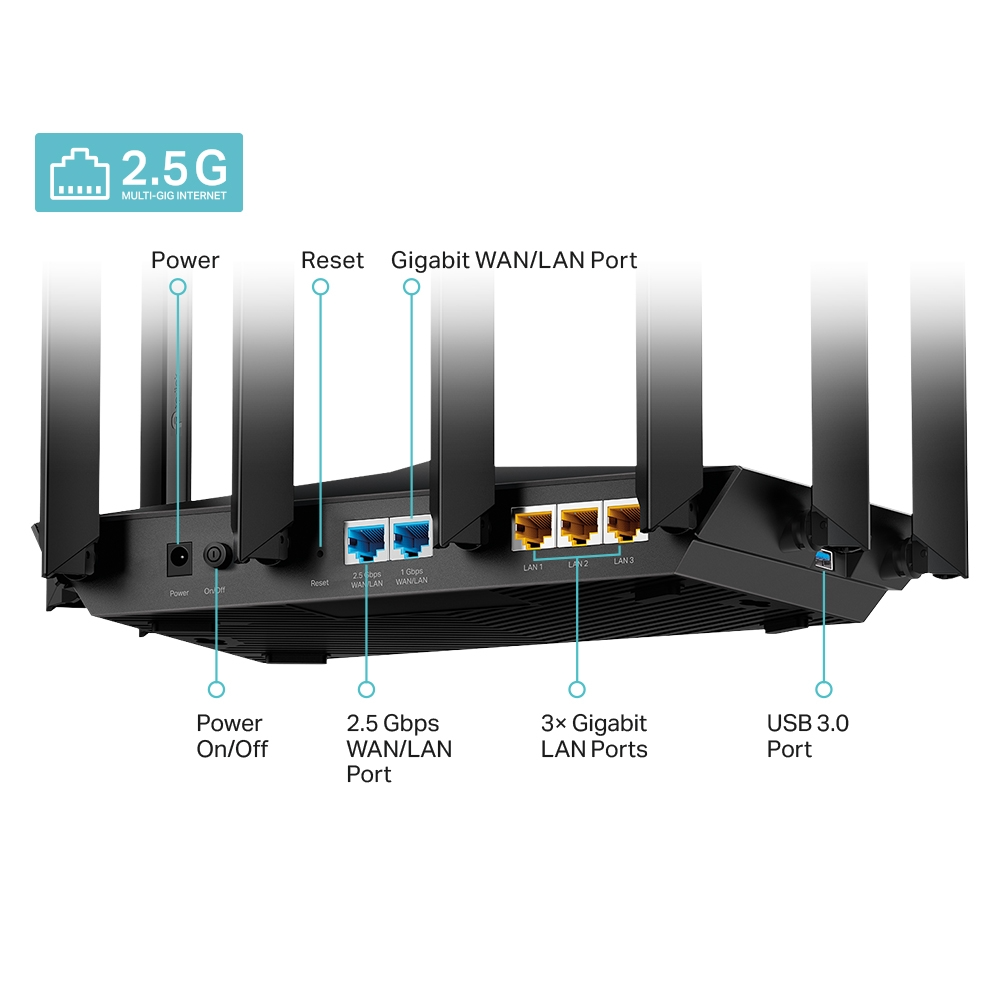

Ethernet Ports • 1× 2.5 Gigabit WAN/LAN Port
• 1× Gigabit WAN/LAN Port
• 3× Gigabit LAN Ports
USB Support 1× USB 3.0 Port
USB Sharing:
• FTP Server
• Media Server
• Samba Server
Buttons • LED On/Off and Wi-Fi On/Off Combo Button
• WPS Button
• Power On/Off Button
• Reset Button
Power • 12 V/2 A
SECURITY
WiFi Encryption • WPA3*6
• WPA2
• WPA
• WPA/WPA2-Enterprise (802.1x)
Network Security SPI Firewall
Access Control
IP & MAC Binding
Application Layer Gateway
HomeShield Security
________________________________________
Real-Time IoT Protection
Malicious Site Blocker
Intrusion Prevention System
DDoS Attack Prevention
Home Network Scanner
Guest Network • 1× 5 GHz Guest Network
• 1× 2.4 GHz Guest Network

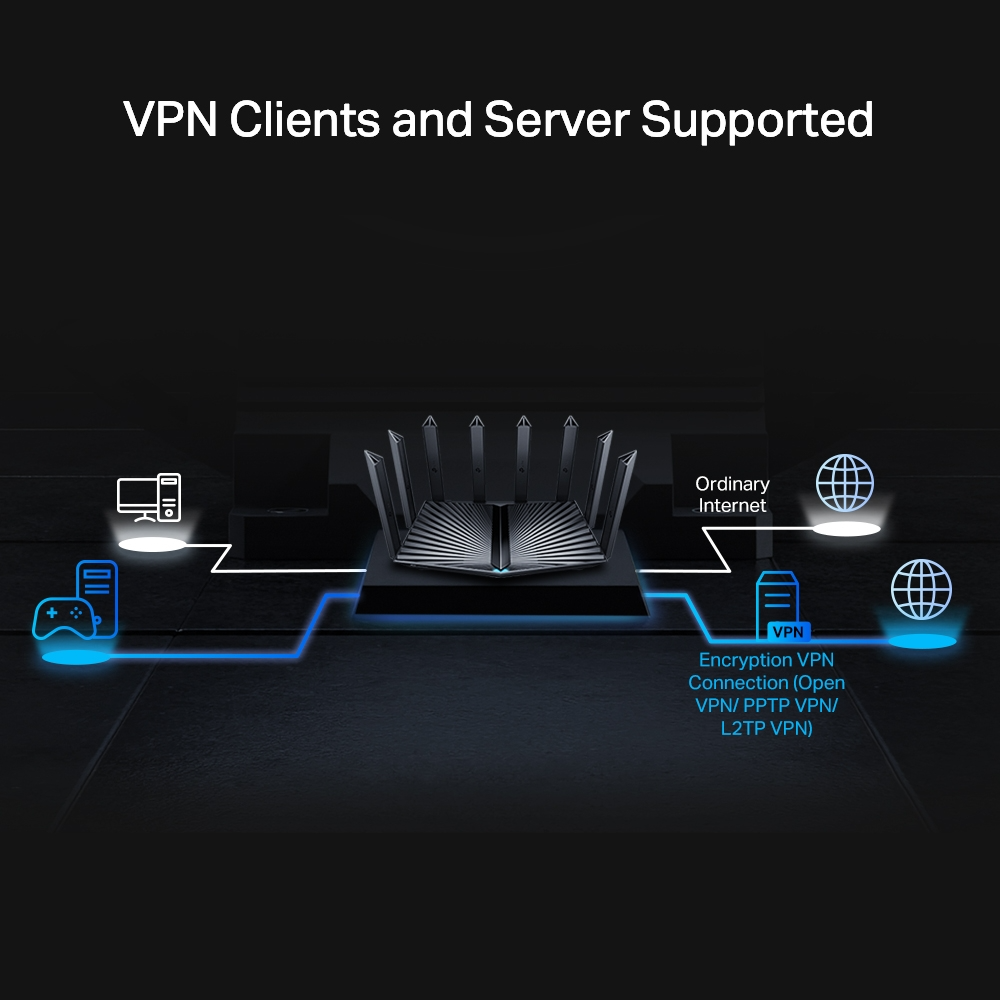

VPN Server • OpenVPN
• PPTP
• L2TP
VPN Client • OpenVPN
• PPTP
• L2TP
SOFTWARE
Protocols • IPv4
• IPv6
Service Kits HomeShield
Learn More>
OneMesh™ OneMesh™ Supported
Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-
Parental Controls HomeShield Parental Controls
________________________________________
• Custom Profiles
• Professional Content Filter Library
• Family Time
• Bedtime
• Off Time
• Time Rewards
• Family Online Time Ranking
• Pause the Internet
• Weekly and Monthly Reports
WAN Types • Dynamic IP
• Static IP
• PPPoE
• PPTP
• L2TP
Quality of Service QoS by Device
Cloud Service • Auto Firmware Upgrade
• OTA Firmware Upgrade
• TP-Link ID
• DDNS
NAT Forwarding • Port Forwarding
• Port Triggering
• DMZ
• UPnP
IPTV • IGMP Proxy
• IGMP Snooping
• Bridge
• Tag VLAN
DHCP • Address Reservation
• DHCP Client List
• Server
DDNS • TP-Link
• NO-IP
• DynDNS
Management • Tether App
• Webpage
Check Web Emulator>
OTHER
System Requirements Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser
Cable or DSL Modem (if needed)
Subscription with an internet service provider (for internet access)
Certifications CE, RoHS, JPA JRF VCCI
Environment Operating Temperature: 0℃~40℃ (32℉ ~104℉)
Operating Humidity: 10%~90% non-condensing
TEST DATA
WiFi Transmission Power FCC:
<24dBm (5.25GHz~5.35GHz&5.47GHz~5.73GHz)
<30dBm (5.15GHz~5.25GHz&5.735GHz~5.835GHz)
<30dBm (2.4GHz)
WiFi Reception Sensitivity • 2.4 GHz:
11ac VHT20 MCS0: -97dBm, 11ac VHT20 MCS11: -67dBm,
11ac VHT40 MCS0: -94dBm, 11ac VHT40 MCS11: -64dBm,
11ax HE20 MCS0: -97dBm, 11ax HE20 MCS11: -67dBm,
11ax HE40 MCS0: -94dBm, 11ac HE40 MCS11: -64dBm
• 5 GHz:
11ac VHT20 MCS0: -96dBm, 11ac VHT20 MCS11: -66dBm,
11ac VHT40 MCS0: -93dBm, 11ac VHT40 MCS11: -63dBm,
11ac VHT80 MCS0: -91dBm, 11ac VHT80 MCS11: -61dBm,
11ac VHT160 MCS0: -86dBm, 11ac VHT160 MCS11: -58dBm,
11ax HE20 MCS0: -96dBm, 11ax HE20 MCS11: -66dBm,
11ax HE40 MCS0: -93dBm, 11ax HE40 MCS11: -63dBm,
11ax HE80 MCS0: -91dBm, 11ax HE80 MCS11: -61dBm,
11ax HE160 MCS0: -86dBm, 11ax HE160 MCS11: -58dBm
PHYSICAL
Dimensions (W×D×H) 7.9 × 7.4 × 2.3 in (200 × 189 × 59 mm)
Package Contents • Wi-Fi Router Archer AX80
• Power Adapter
• RJ45 Ethernet Cable
• Quick Installation Guide
