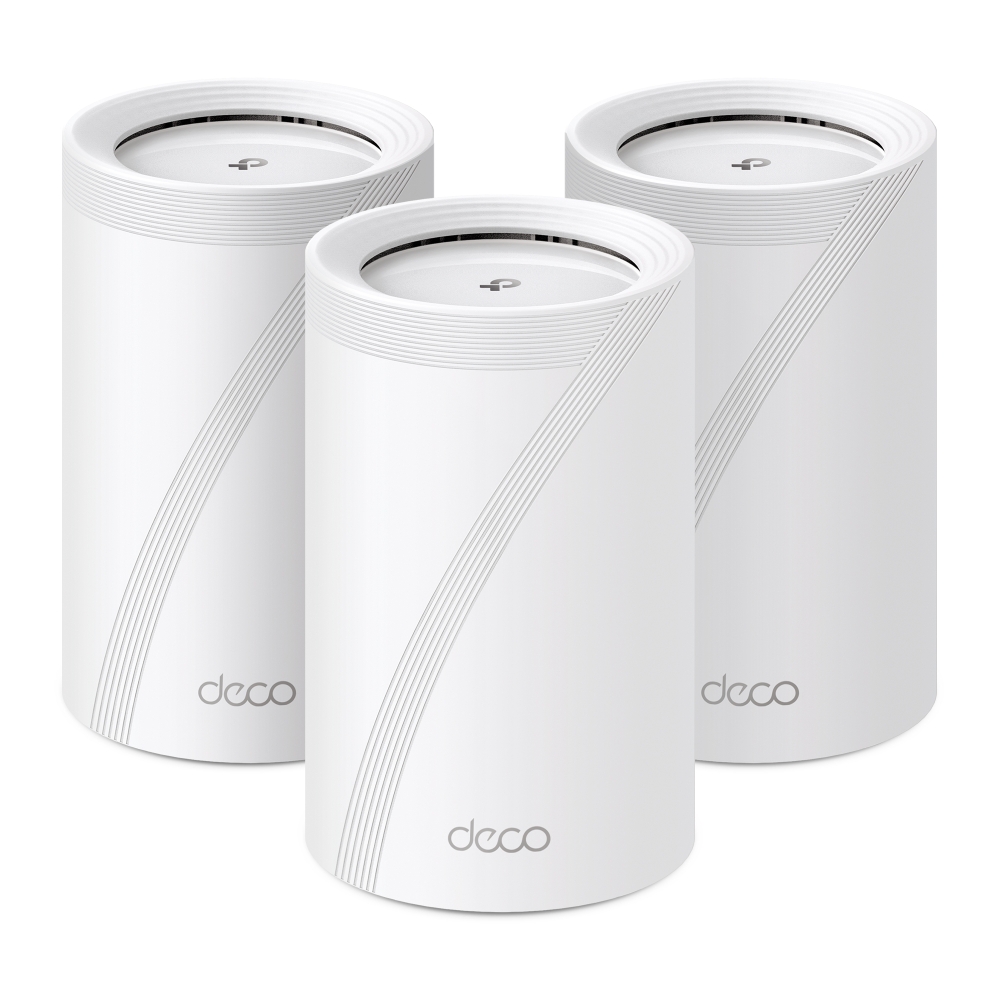

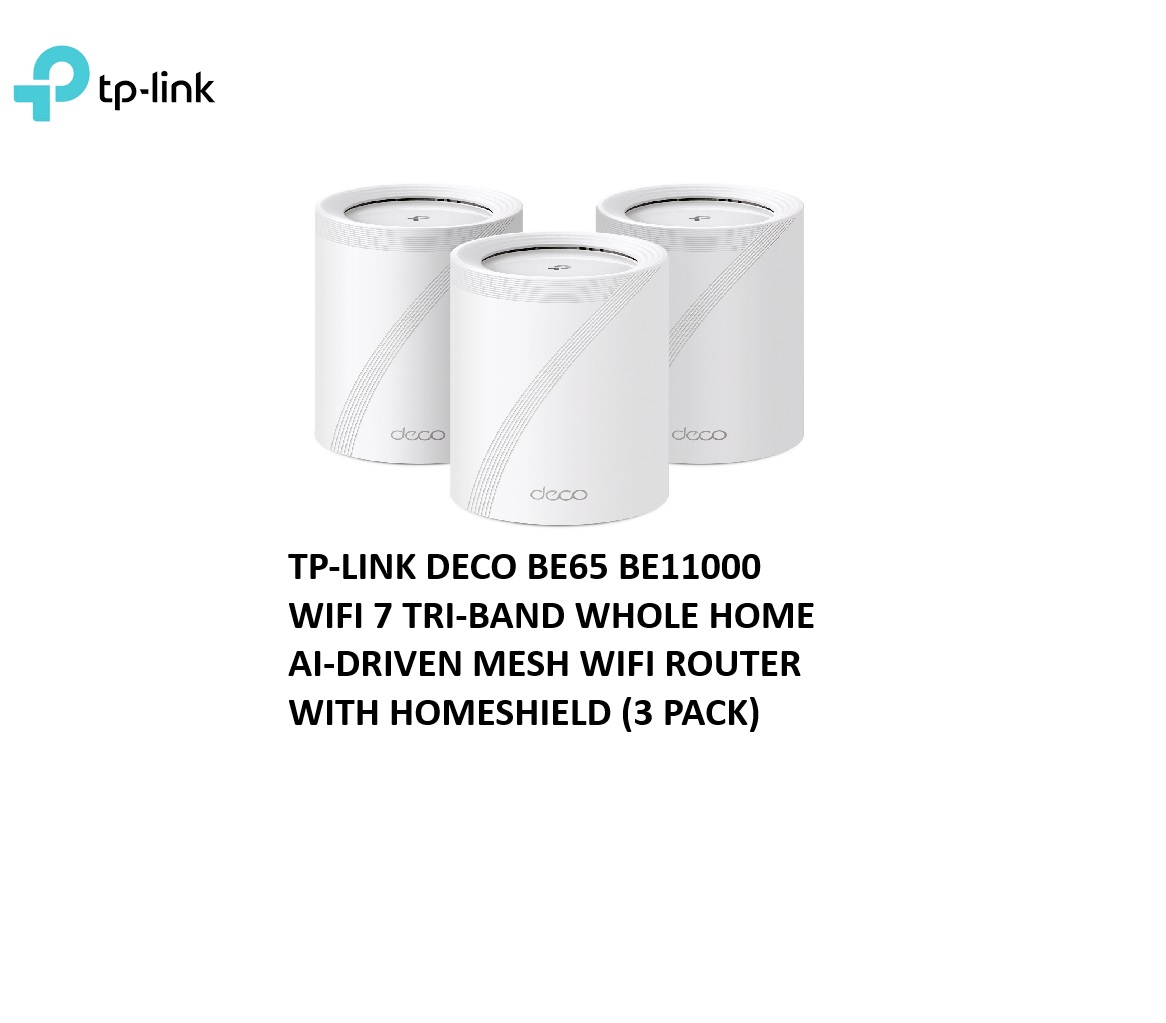

Deco BE65

BE11000 Whole Home Mesh WiFi 7 System

* 11 Gbps Tri-Band WiFi – 5760 Mbps (6 GHz) + 4320 Mbps (5 GHz) + 574 Mbps (2.4 GHz).†

* 2.5 Gbps Wired Connections – 4× 2.5 Gbps ports ensure max flexibility and boosted throughput.§

* Wireless and Wired Combined Backhaul – Connects a wireless and wired backhaul with each unit simultaneously to improve overall throughput and reduce latency.

* Multi-Link Operation (MLO) – Simultaneously send and receive data across different bands and channels to increase throughput, reduce latency, and improve reliability.△

* 320 MHz Channels – Double the bandwidth and enables many more simultaneous transmissions at the fastest possible speeds.△

* Works on the 6 GHz Band – Minimizes congestion with greenfield spectrum, delivering robust high-speed connections.△

* TP-Link HomeShield – Provides comprehensive network protection, robust parental controls, and real-time IoT security.*

* Universal Compatibility – Backward compatible with all WiFi generations and works with any internet service provider (ISP) and modem.☆

WIRELESS

Standards Wi-Fi 7

IEEE 802.11be/ax 6 GHz

IEEE 802.11be/ax/ac/n/a 5 GHz

IEEE 802.11ax/n/b/g 2.4 GHz

WiFi Speeds BE11000

6 GHz: 5760 Mbps (802.11be)

5 GHz: 4320 Mbps (802.11be)

2.4 GHz: 574 Mbps (802.11ax)

WiFi Range Broader Whole Home Coverage

TP-Link Mesh Technology

Optional Ethernet backhaul work together to link Deco units to provide seamless coverage

AI-Driven Mesh

Intelligently learns the network environment to provide ideal Wi-Fi unique to your home

4× High-Performance Antennas (Internal)

Multiple antennas form a signal-boosting array to cover more directions and large areas

Tri-Band

A newly-opened 6 GHz band brings more bandwidth and faster speeds

WiFi Capacity Very High

Tri-Band

Distribute devices to different bands for optimal performance

2×2 MU-MIMO

Simultaneously communicates with multiple MU-MIMO clients

OFDMA

Simultaneously communicates with multiple WiFi 7 clients

6 Streams

More than enough bandwidth for connected devices

Working Modes Router Mode

Access Point Mode

Advanced Functions • Multi-Link Operation (MLO)

• 320 MHz Channel

• 4K-QAM

• Multi-RUs

• Works with Alexa and Google Assistant

SECURITY

Network Security SPI Firewall

Access Control

HomeShield Security

Real-Time IoT Protection

Malicious Site Blocker

Intrusion Prevention System

DDoS Attack Prevention

Home Network Scanner

Guest Network 1× 6 GHz Guest Network

1× 5 GHz Guest Network

1× 2.4 GHz Guest Network

Effective Time

Bandwidth Control

VPN Server • OpenVPN Server

• PPTP VPN Server

• L2TP/IPSec VPN Server

VPN Client • OpenVPN Client

• PPTP VPN Client

• L2TP/IPSec VPN Client

WiFi Encryption WPA-Personal

WPA2-Personal

WPA3-Personal

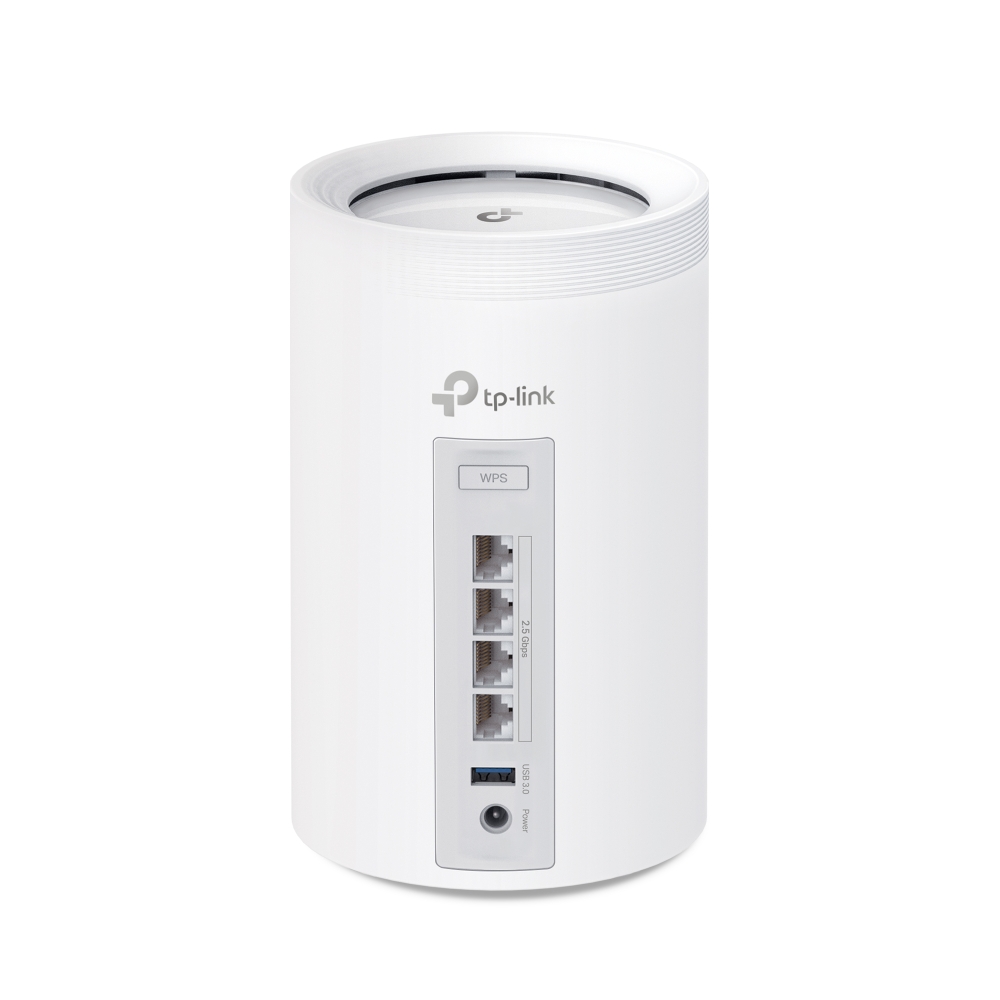

HARDWARE

Ethernet Ports • 4× 2.5 Gbps

*Per Deco Unit

Supports WAN/LAN auto-sensing

USB Support 1× USB 3.0 Port

FTP Server

Media Server

Apple Time Machine

Samba Server

Buttons 1× Reset Button

1× WPS
