Original 3 years Warranty by TP-Link Malaysia

Feature:

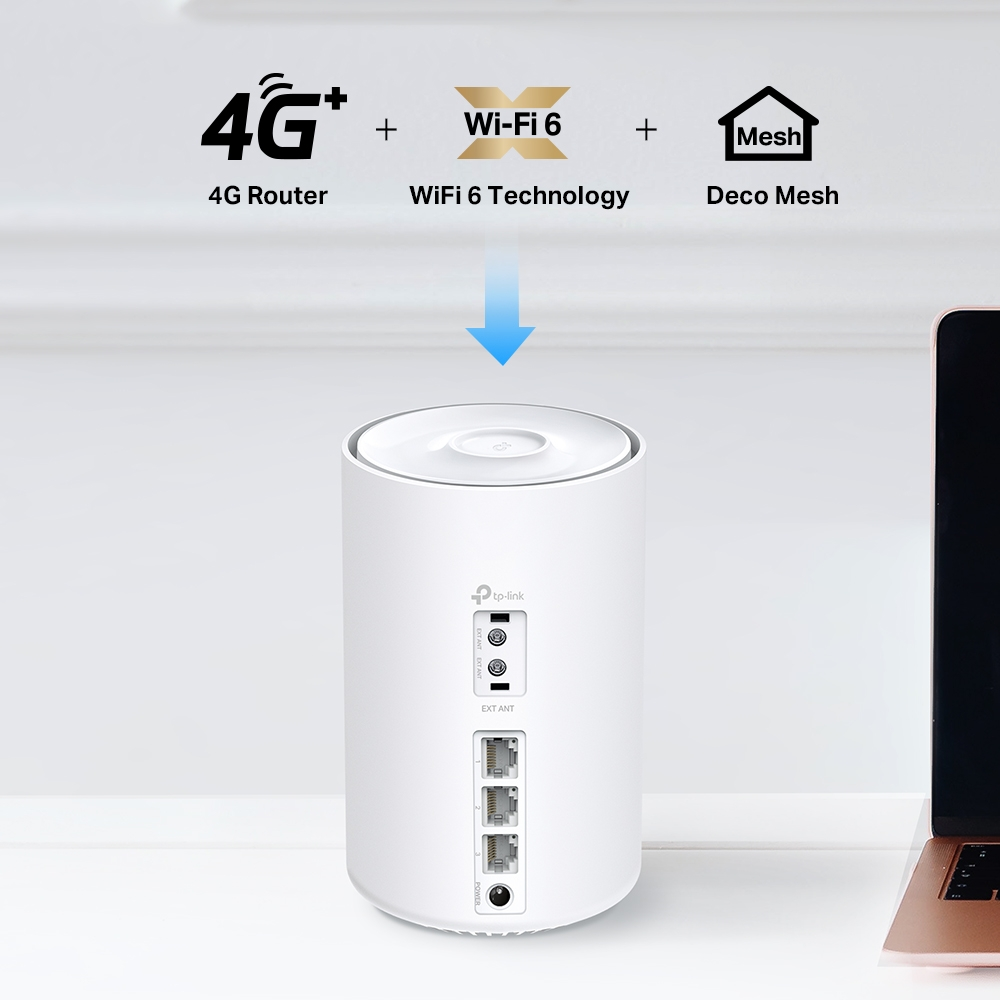

Internet Everywhere with 4G+ Speed – Provides WiFi 6 Mesh coverage through 4G+ CAT6 access.

AX1500 Dual-Band WiFi – 1201 Mbps (5 GHz) and 300 Mbps (2.4 GHz) dual band WiFi with WiFi 6 technology.†

Seamless Roaming – Walk through your home and stay connected with the fastest possible speeds.‡

Ultra-Low Latency – Greater reduction in latency enables more responsive gaming and video chatting.

Gigabit Wired Speeds – 3× Gigabit ports provide sufficient connectivity.**

Parental Controls – Limit online time and block inappropriate websites according to unique profiles you create for each family member.

HARDWARE

Ethernet Ports:

3× Gigabit Ports

Supports WAN/LAN auto-sensing

Buttons: RESET Button

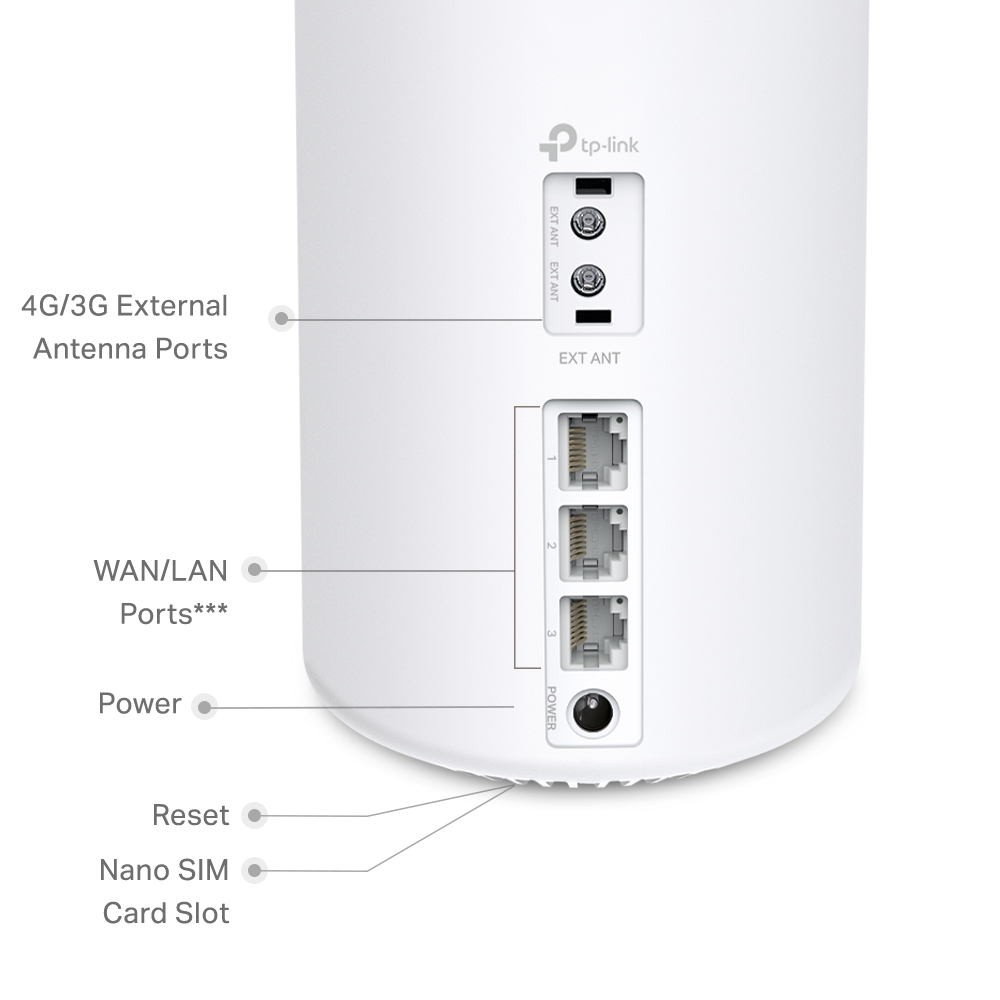

Ports and Connections:

2× 3G/4G external SMB antenna interface (also provide 2x SMB to SMA-F Adapters)

SIM Card Format: Nano-SIM

Compatibility

4G:

FDD-LTE: B1/B3/B5/B7/B8/B20/B28 (2100/1800/850/2600/900/800/700 MHz)

TDD-LTE: B38/B40/B41 (2600/2300/2500 MHz)

3G: DC-HSPA+/HSPA/UMTS B1/B5/B8 (2100/850/900 MHz)

SECURITY

Network Security:

SPI Firewall

Access Control

Guest Network:

1× 5 GHz Guest Network

1× 2.4 GHz Guest Network

WiFi Encryption:

WPA-Personal

WPA2-Personal

WPA3-Personal

WIRELESS

Standards:

Wi-Fi 6

IEEE 802.11ax/ac/n/a 5 GHz

IEEE 802.11n/b/g 2.4 GHz

WiFi Speeds:

AX1500

5 GHz: 1201Mbps (802.11ax)

2.4 GHz: 300 Mbps (802.11ax)

WiFi Range:

1-2 Bedroom Houses (1-pack)

TP-Link Mesh Technology

Optional Ethernet backhaul work together to link Deco units to provide seamless coverage

2 LTE antennas, 2 Wi-Fi antennas (Internal)

Multiple antennas form a signal-boosting array to cover more directions and large areas

WiFi Capacity:

High

Dual-Band

Distribute devices to different bands for optimal performance

2×2 MU-MIMO

Simultaneously communicates with multiple MU-MIMO clients

OFDMA

Simultaneously communicates with multiple WiFi 6 clients

4 Streams

More than enough bandwidth for connected devices

Working Modes: 3G/4G, Router, Access Point

SOFTWARE

Protocols:

IPv4

IPv6

WAN Types:

Dynamic IP

Static IP

PPPoE

L2TP

PPTP

Quality of Service: QoS by Device

Cloud Service:

OTA Firmware Upgrade

TP-Link ID

DDNS

NAT Forwarding:

Port Forwarding

UPnP

IPTV:

IGMP Proxy

IGMP Snooping

Bridge

Tag VLAN

DHCP:

Address Reservation

DHCP Client List

Server

DDNS: TP-Link

Management: Deco App

TEST DATA

WiFi Transmission Power:

CE:

≤20 dBm (2.4GHz)

≤23 dBm (5GHz)

Dimensions (W×D×H)

4.13 × 4.13 × 6.57 in (105 × 105 × 167 mm)

Package Contents

1x Deco X10-4G unit

1x RJ45 Ethernet Cable

1x Power Adapter

2x SMB to SMA Adapters

1x Quick Installation Guide
