TP-LINK EAP653 AX3000 Ceiling Mount WiFi 6 Access Point
MYR849.00
Color
Brand: TP-LINK
Get shipping estimates
| Country | ||
| State | ||
| Shipping Method | ||
|
|
||
Specifications
Working Modes :Range Extender / Access Point
Interface :1× Gigabit Ethernet (RJ-45) Port (supports IEEE802.3at PoE)
Button :Reset
Power Supply :•802.3at PoE / 12V DC (EU Version: 12 V / 1.0 A DC. US Version: 12 V / 1.5 A DC).
Note: DC adapter is not included in the package, and is sold separately.
Power Consumption :EU: 13.5 W US: 14.7 W
Dimensions ( W x D x H ) :6.3 × 6.3 × 1.3 in (160 × 160 × 33.6 mm)
Antenna •Internal Omni ,2.4 GHz: 2× 4 dBi 5 GHz: 2× 5 dBi
Mounting •Ceiling /Wall Mounting (Kits included) ,Junction Box Mounting
Wireless Standards :IEEE 802.11ax/ac/n/g/b/a
Frequency :2.4GHz and 5GHz
Signal Rate :5 GHz: Up to 2402 Mbps† 2.4 GHz: Up to 574 Mbps†
Wireless Functions
•1024-QAM
•4× Longer OFDM Symbol
•OFDMA
•Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
•Enable/Disable Wireless Radio
•Automatic Channel Assignment
•Transmit Power Control (Adjust Transmit Power on dBm)
•QoS(WMM)
•MU-MIMO
•HE160 (160 MHz Bandwidth)‡
•Seamless Roaming §
•Omada Mesh§
•Band Steering
•Load Balance
•Airtime Fairness
•Beamforming
•Rate Limit
•Reboot Schedule
•Wireless Schedule
•Wireless Statistics based on SSID/AP/Client
Wireless Security
•Captive Portal Authentication§
•Access Control
•Wireless Mac Address Filtering
•Wireless Isolation Between Clients
•SSID to VLAN Mapping
•Rogue AP Detection
•802.1X Support
•WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmission Power :CE: dBm(2.4 GHz, EIRP)
dBm(5 GHz, Band1 & Band2, EIRP)
dBm(5 GHz, Band3, EIRP)
FCC: dBm (2.4 GHz)
dBm (5 GHz)
Omada App :Yes

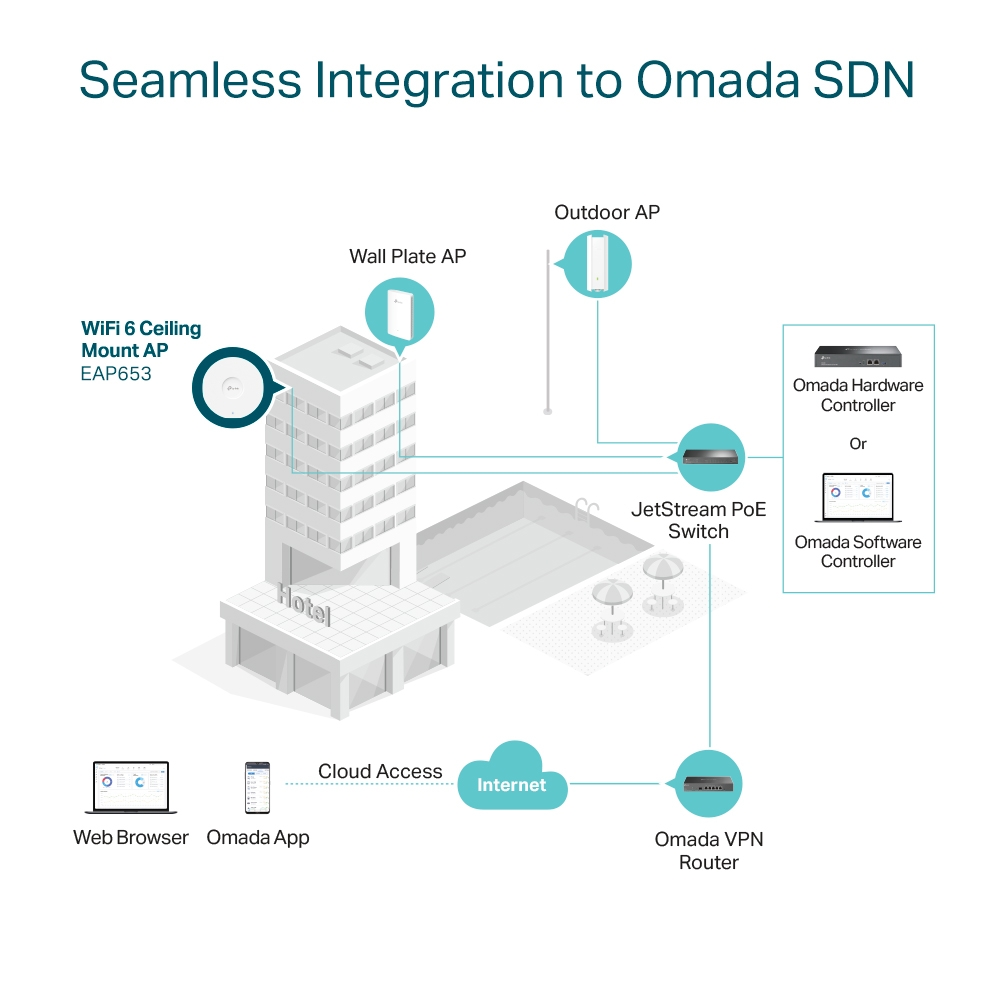

Centralized Management
•Omada Hardware Controller (OC300)
•Omada Hardware Controller (OC200)
•Omada Software Controller
•Omada Cloud-Based Controller
Cloud Access :Yes (Through OC300, OC200, Omada Software Controller, or Omada Cloud-Based Controller)
Email Alerts :Yes
LED ON/OFF Control :Yes
Management MAC Access Control :Yes
SNMP :v1, v2c, v3
System Logging Local/Remote Syslog :Local/Remote Syslog
SSH :Yes
Web-based Management :HTTP/HTTPS
L3 Managemnet :Yes
Multi-site Management :Yes
Management VLAN :Yes
Zero-Touch Provisioning :Yes. Requiring the use of Omada Cloud-Based Controller.
Certification :CE, FCC, RoHS
Package Contents
• EAP653
• Ceiling/Wall Mounting Kits
• Installation Guide
Note: DC adapter is not included in the package, and is sold separately.
System Requirements :Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows 11, Linux
Environment
• Operating Temperature: 0–40 ℃ (32–104 ℉)
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
What's in the box
- AX3000 Ceiling Mount Wi-Fi 6 Access Point EAP653
- Ceiling/ Wall Mounting Kits
- Installation Guide
Warranty
3 Year Limited Warranty
Local Manufacturer Warranty
