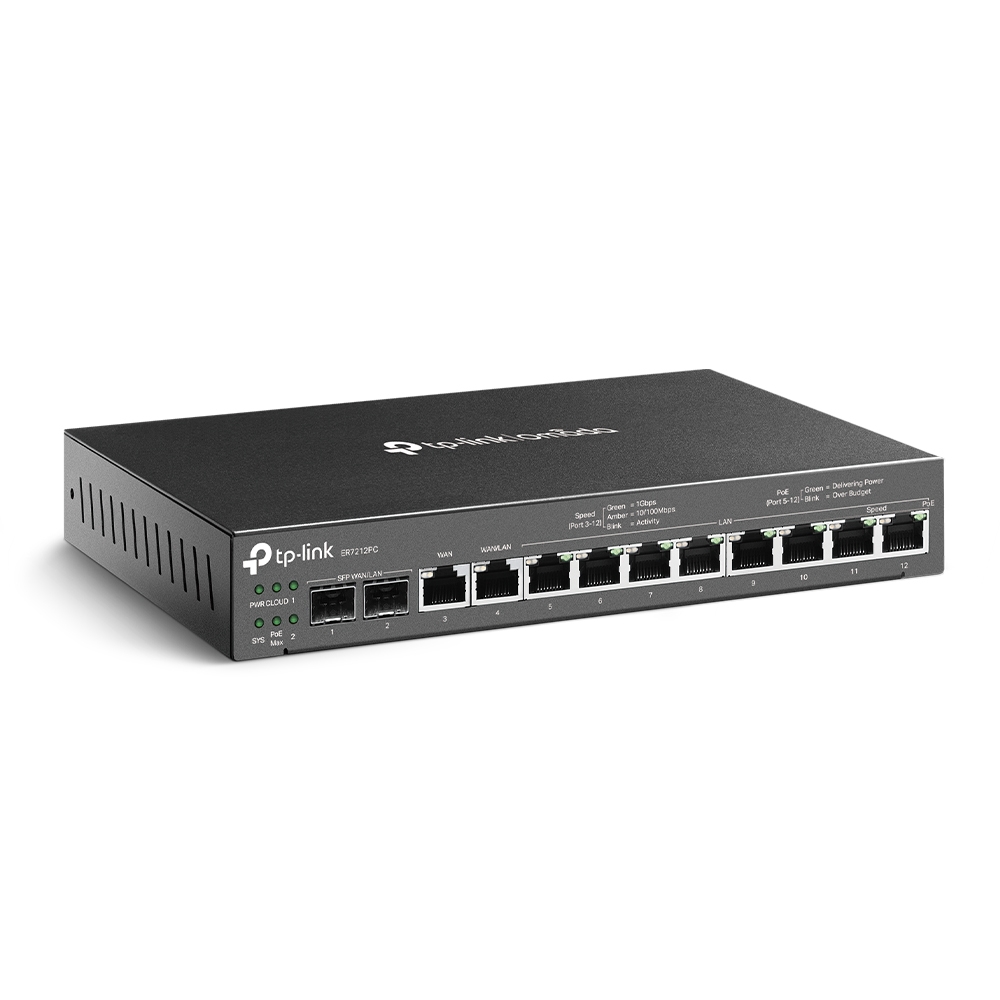

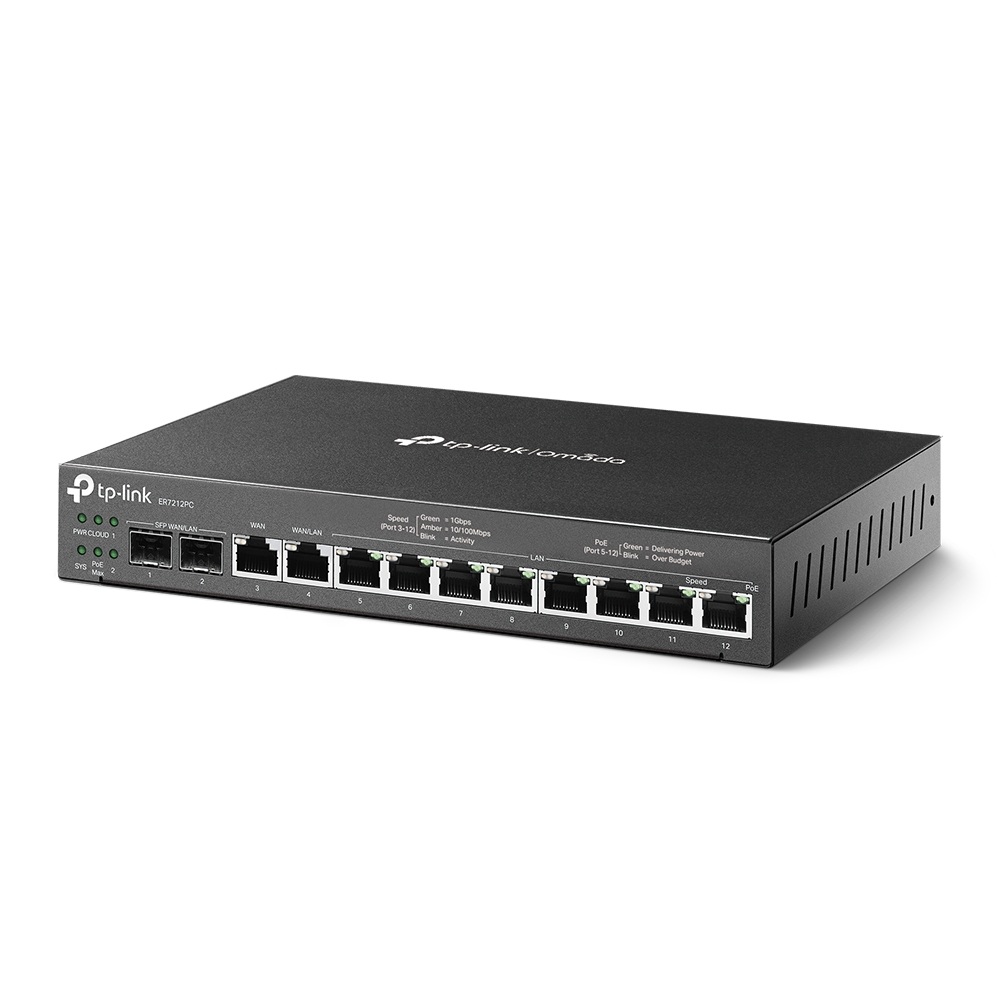

TP-LINK OMADA GIGABIT VPN ROUTER WITH PoE+ PORTS AND CONTROLLER ABILITY 4 POE 110W 4 ETHERNET LAN PORT ER7212PC

+ Add to Wishlist

MYR1099.00

Color
Add To Cart

Brand: TP-LINK

  • Share

Get shipping estimates

Country
State
Shipping Method

HARDWARE FEATURES
Standards and Protocols• IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE 802.3x, IEEE 802.1q
• TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, SNMP
Interface• 2 Gigabit SFP WAN/LAN ports
• 1 Gigabit WAN port
• 1 Gigabit LAN/WAN port
• 8 Gigabit LAN ports
Network Media• 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m)
EIA/TIA-568 100Ω STP (Max 100 m)
• 100BASE-TX: UTP category 5, 5e cable (Max 100 m)
EIA/TIA-568 100Ω STP (Max 100 m)
• 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m)
Fan QuantityFanless
ButtonReset Button
Power Supply53.5VDC/2.43A Adapter
PoE Budget8 ports PoE+ output, 110 W PoE Budget
Flash8Mb Nor + 4 GB EMMC
DRAM1 GB DDR3
Dimensions ( W x D x H )8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm)
Protection4 kV surge protection
EnclosureSteel
MountingDesktop/Wall-mount
PERFORMANCE
Concurrent Session24,980
New Sessions /Second1,900
NAT (Static IP)935.5 Mbps / 942.1 Mbps
NAT(DHCP)940.2 Mbps / 941.7 Mbps
NAT(PPPoE)913.1 Mbps / 935.2 Mbps
NAT (L2TP)545.0 Mbps / 912.7 Mbps
NAT (PPTP)523.0 Mbps / 912.8 Mbps
IPsec VPN Throughput (AES256)168.5 Mbps
OpenVPN34 Mbps
L2TP VPN Throughput• Unencrypted: 845.3 Mbps
• Encrypted: 333.2 Mbps
PPTP VPN Throughput• Unencrypted: 1012.6 Mbps
• Encrypted: 401.4 Mbps
66 Byte Packet forwarding rate154,069 pps / 156,977 pps
1,518 Byte Packet forwarding rate81,193 pps / 81,193 pps
BASIC FUNCTIONS
WAN Connection Type• Static IP
• Dynamic IP
• PPPoE
• PPTP
• L2TP
DHCP• DHCP Server
• DHCP Address Reservation
• Multi-IP Interfaces
• Multi-Net DHCP
IPv6support
VLAN802.1Q VLAN
IPTVIGMP v2/v3 Proxy
ADVANCED FUNCTIONS
Advanced Routing• Static Routing
• Policy Routing
Bandwidth ControlIP/Port-based Bandwidth Control
Load Balance• Intelligent Load Balance
• Application Optimized Routing
• Link Backup
• Online Detection
NAT• Multi-Net NAT
• Virtual Server
• NAT-DMZ
• FTP/H.323/SIP/IPSec/PPTP ALG
• UPnP
Session LimitIP-based Session Limit
VPN
IPsec VPN• 20 IPSec VPN Tunnels
• LAN-to-LAN, Client-to-LAN
• Main, Aggressive Negotiation Mode
• AES128, AES192, AES256 Encryption Algorithm
• IKE v1/v2
• SHA1, SHA2 Authentication Algorithm
• NAT Traversal (NAT-T)
• Dead Peer Detection (DPD)
• Perfect Forward Secrecy (PFS)
PPTP VPN• PPTP VPN Server
• PPTP VPN Client (10)
• 16 Tunnels
• PPTP with MPPE Encryption
L2TP VPN• L2TP VPN Server
• L2TP VPN Client (10)
• 16 Tunnels
• L2TP over IPSec
OpenVPN• OpenVPN Server
• OpenVPN Client (10)§
• 16 OpenVPN Tunnels
SECURITY
FilteringURL Filtering
Attack Defense• TCP/UDP/ICMP Flood Defense
• Block TCP Scan (Stealth FIN/Xmas/Null)
• Block Ping from WAN
Access ControlSource/Destination IP Based Access Control
AUTHENTICATION
Web Authentication• No Authentication
• Simple Password
• Hotspot (Local User / Voucher / SMS / Radius)
• External Radius Sever
• External Portal Sever
• Facebook
MANAGEMENT
Omada AppYes
Cloud AccessYes
ServiceDynamic DNS (Dyndns, No-IP)
Maintenance• Web Management Interface
• Remote Management
• Export & Import Configuration
• SNMP v1/v2c/v3
• Syslog Support
Management Features• Automatic Device Discovery
• Intelligent Network Monitoring
• Abnormal Event Warnings
• Unified Configuration
• Reboot Schedule
• Captive Portal Configuration
• Management up to 1 Router, 2 Switches and 10 EAPs
OTHERS
CertificationCE, FCC, RoHS
Package Contents• ER7212PC
• Power Adapter
• Power Cord
• Quick Installation Guide
System Requirements• Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10
• MAC OS, NetWare, UNIX or Linux
Environment• Operating Temperature: 0 °C to 45 °C (32 °F to 113 °F)
• Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F)
• Operating Humidity: 10% to 90% non-condensing
• Storage Humidity: 5% to 90% non-condensing
